Dynamics 365 For Operations Tip: Now you can use Position based hierarchies in all workflows

Today we go over a great Dynamics 365 For Operations Tip: Using Position based hierarchies in all workflows to get the most out of your data.

Table of Content

    Using a Reporting manager hierarchy for routing workflow documents has always been possible in Microsoft Dynamics AX and Dynamics 365 For Operations. This worked great in cases where you were required to route all of an employee’s workflow documents, such as timesheets, expense reports, purchase requisitions and more, to the manager they report to.

    Now in Dynamics 365 For Operations, you can use Custom configured position hierarchies to route workflow documents. So, let’s say  you have a scenario where you need to route timesheets of an employee to the reporting manager, but route the expense reports to a manager they report to in a specific project hierarchy, you can configure this in Dynamics 365 For Operations ! Let’s see how?

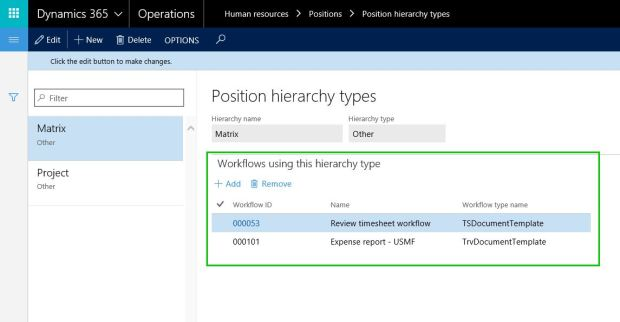

    On the Position Hierarchy Types, you can select the workflows which can use the selected position Hierarchy for outing documents. For example, in the screenshot below notice that the Matrix based hierarchy can be used by the expense report – USMF and Timesheet workflow.

    dynamics365-position-hierarchy-types

    NOTE: Note that a workflow can use only one custom hierarchy.

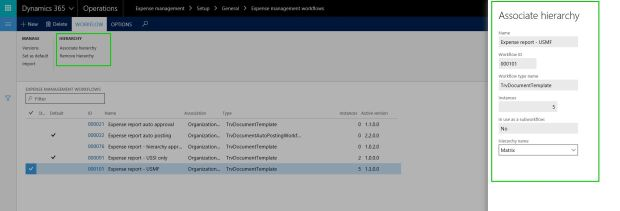

    Additionally, you will notice that, on the workflow setup form, you can now view and manage the associated configurable hierarchies.

    dynamics365-associate-hierarchy

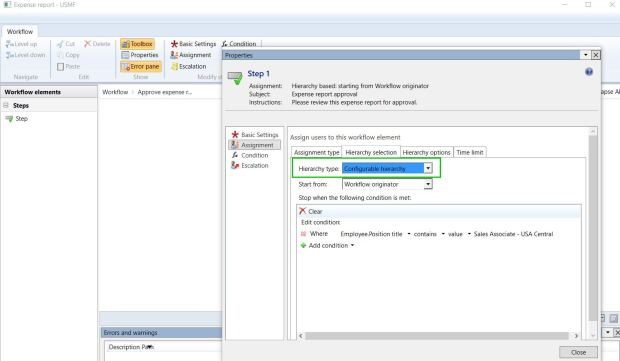

    On the workflow setup/configuration, you can select the steps to be assigned to a Configurable hierarchy. See screenshot below.

    dynamics365-workflow-step-1

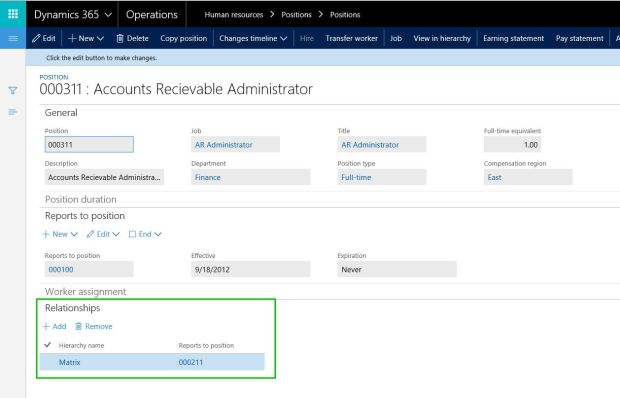

    So, when an employee submits their expense report/timesheet, this workflow setup is going to look for the Matrix Position Hierarchy and assign the workflow document to the worker to whom the employee reports in the Matrix hierarchy instead of the managerial hierarchy.

    dynamics365-position-hierarchy

    dynamics365-ar-administrator

    Small, but useful enhancement !! Hope this quick tip is useful.
